• Junction

Junction is a compact, 4 channel attenuverter, cascading mixer and multiple designed to mix and distribute control voltages in your rack.


    Regular price $109.00 USD

    combine & copy your eurorack signals

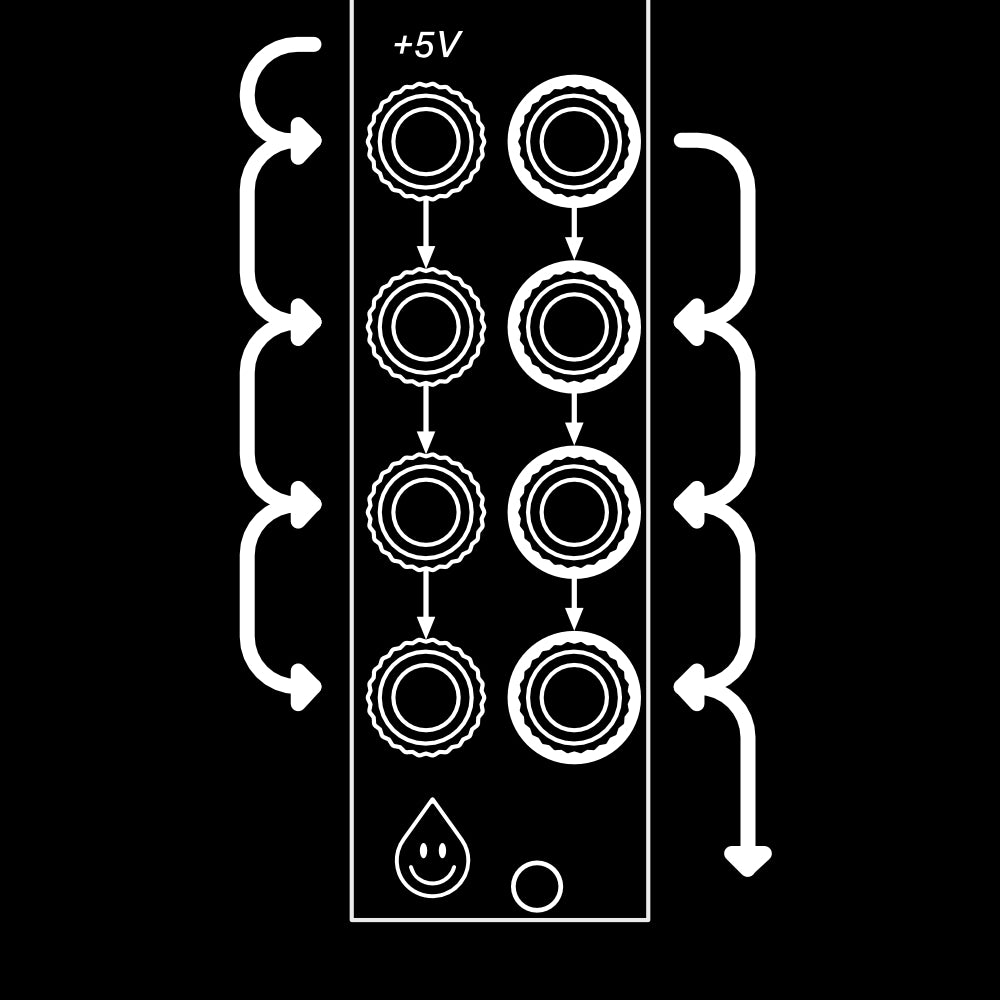

    Cascading inputs & outputs

    If no cable is connected to an input, that input receives a copy of the input above it. If no cable is plugged into the first input it receives +5V allowing some or all of junctions channels to be used as DC voltage sources. If no cable is connected to an output, it mixes with the output below at unity gain.

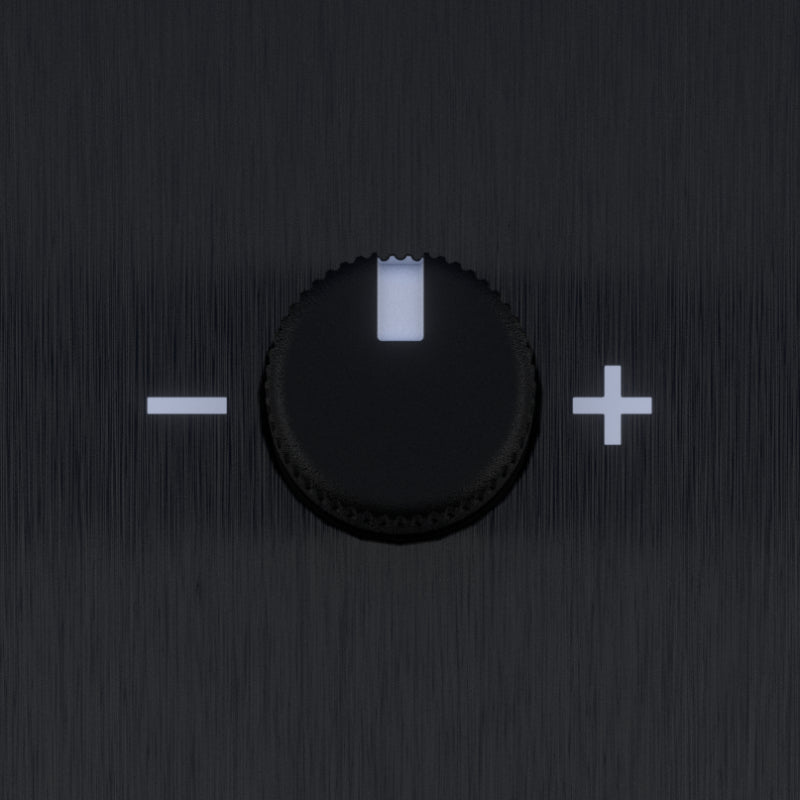

    Polarizing gain control

    Each knob on Junction controls the gain of the signal at the channel input from +1x to the right through 0x in the center to -1x to the left


    about junction

      • 4hp
      • 25mm deep
      • 23mA on +12V, 20mA on -12V, 0mA on +5V
      • 4 channels of polarizing gain control
      • cascading multiple inputs
      • cascading mix outputs
      • useful for attenuating, offsetting and mixing audio and control voltages
      • reverse polarity power protection
      • designed and assembled in the Pacific Northwest
