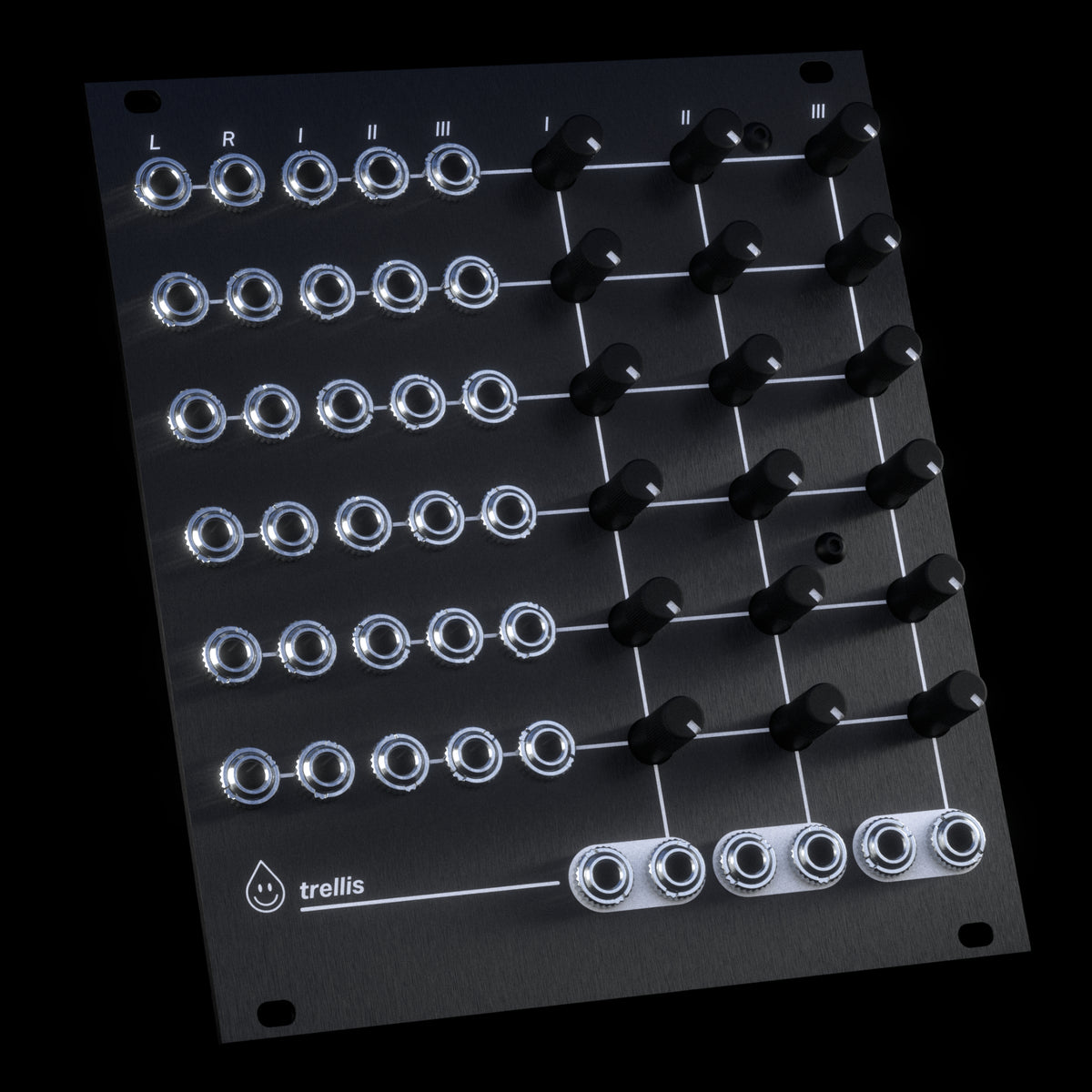

• Trellis

Trellis is a 6 stereo input, 3 stereo output matrix mixer with manual and CV control over all points of the matrix.   Trellis provides many ways to route sound sources through sound processors in your eurorack system, including back through themselves in unique feedback configurations!

Regular price $349.00 USD

flexible audio routing for eurorack systems

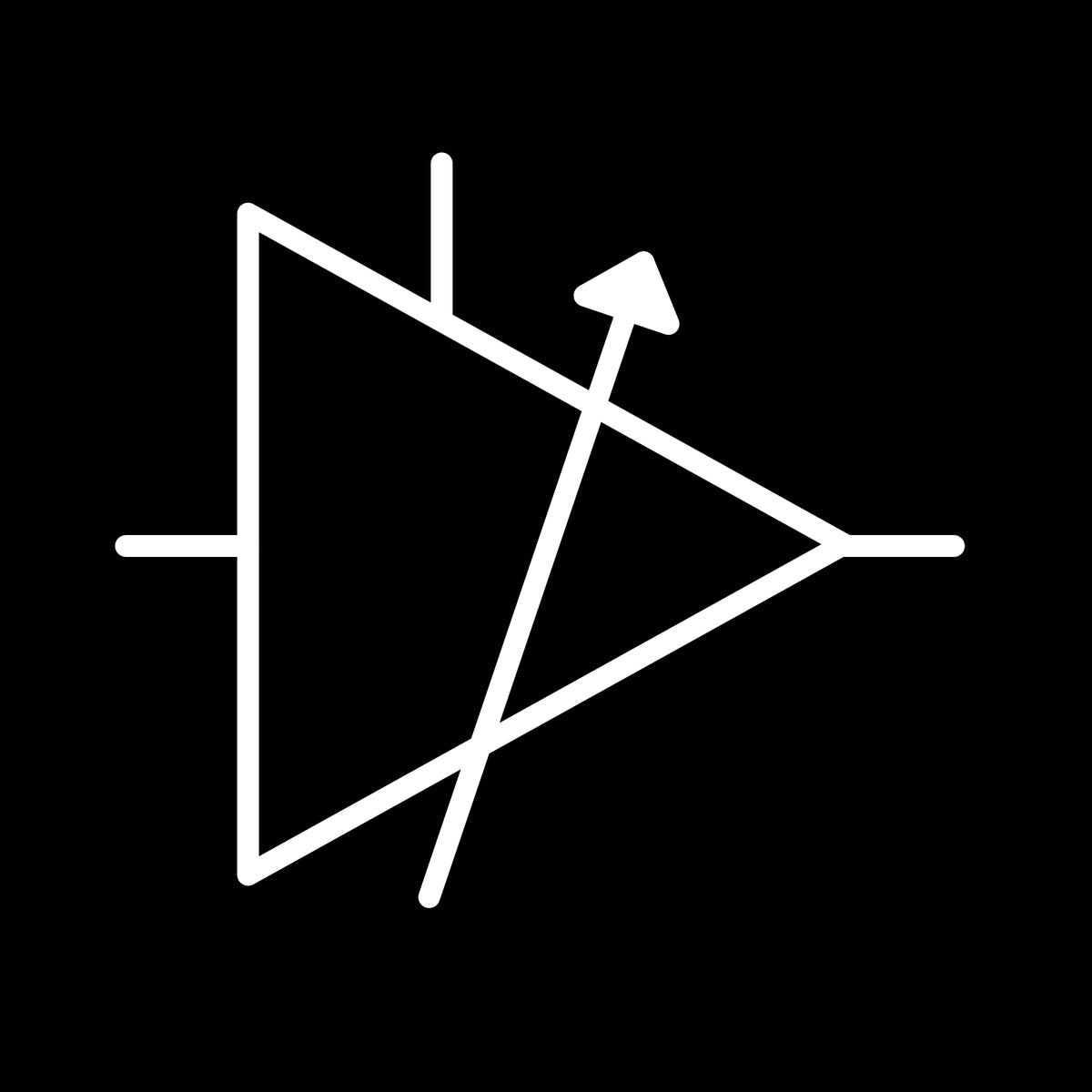

voltage controlled

Each point of the mix matrix on Trellis can be manually controlled with a trimmer knob to set maximum gain, and voltage controlled within that range with external CV signals

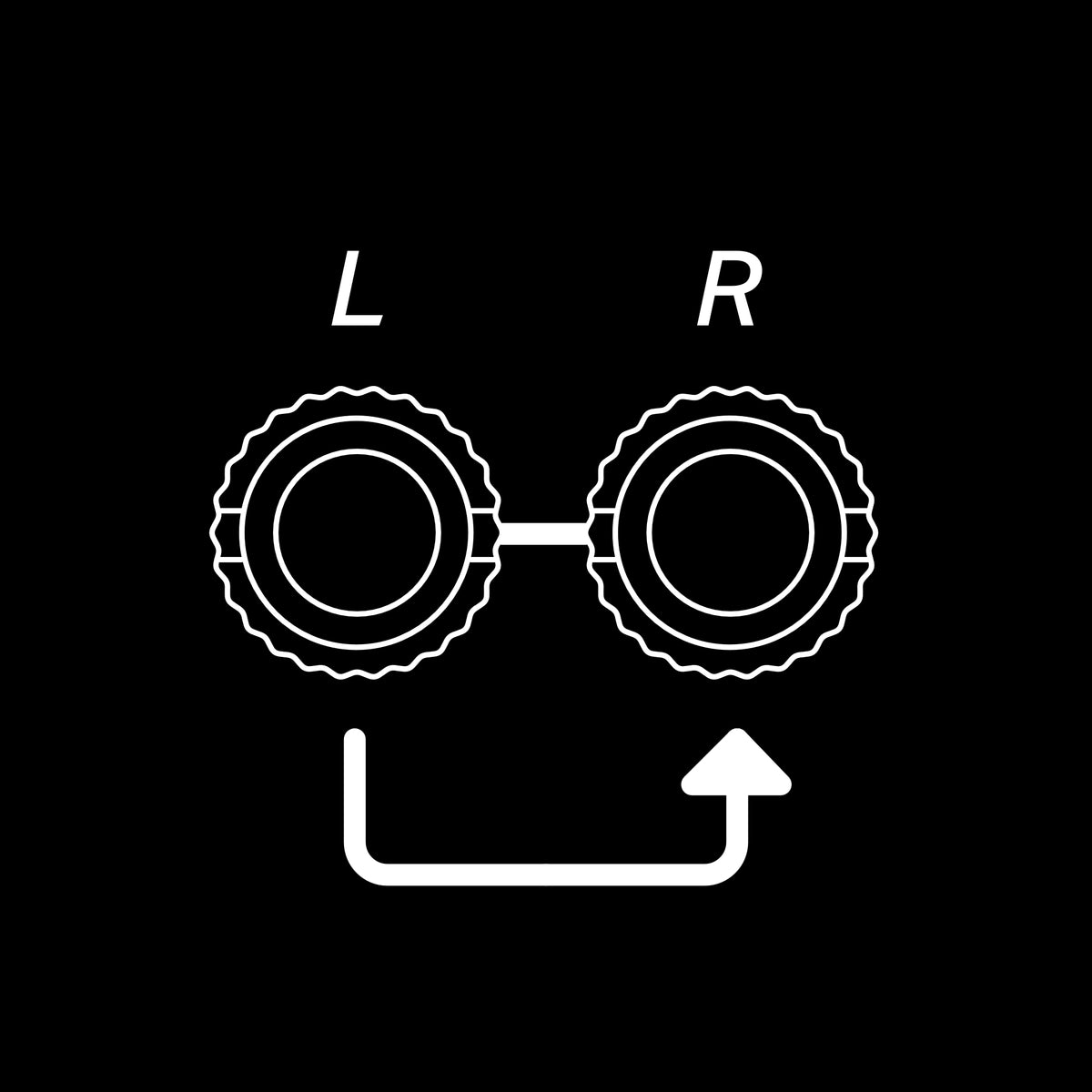

mono compatible

When no cable is patched into the right input of a channel on Trellis, a mono signal at the left input will normalize over to the right input.  Similarly, if no cable is patched into the left output, both left and right signals will sum at the right output

about trellis

    • 22hp
    • 25mm deep
    • 98mA on +12V, 98mA on -12V, 0mA on +5V

    • 6 stereo inputs
    • 3 stereo outputs
    • Left input normalizes to right input jack for mono sources
    • CV control over individual level of all points in the matrix (36 VCAs!)
    • Attenuator knobs to set maximum level for all points in the matrix
    • Left output mixes with right output on the right output jack if nothing patched into left output jack (mono compatible output)
    • reverse polarity power protection
    • designed and assembled in the Pacific Northwest
