a melodic playground for your eurorack system

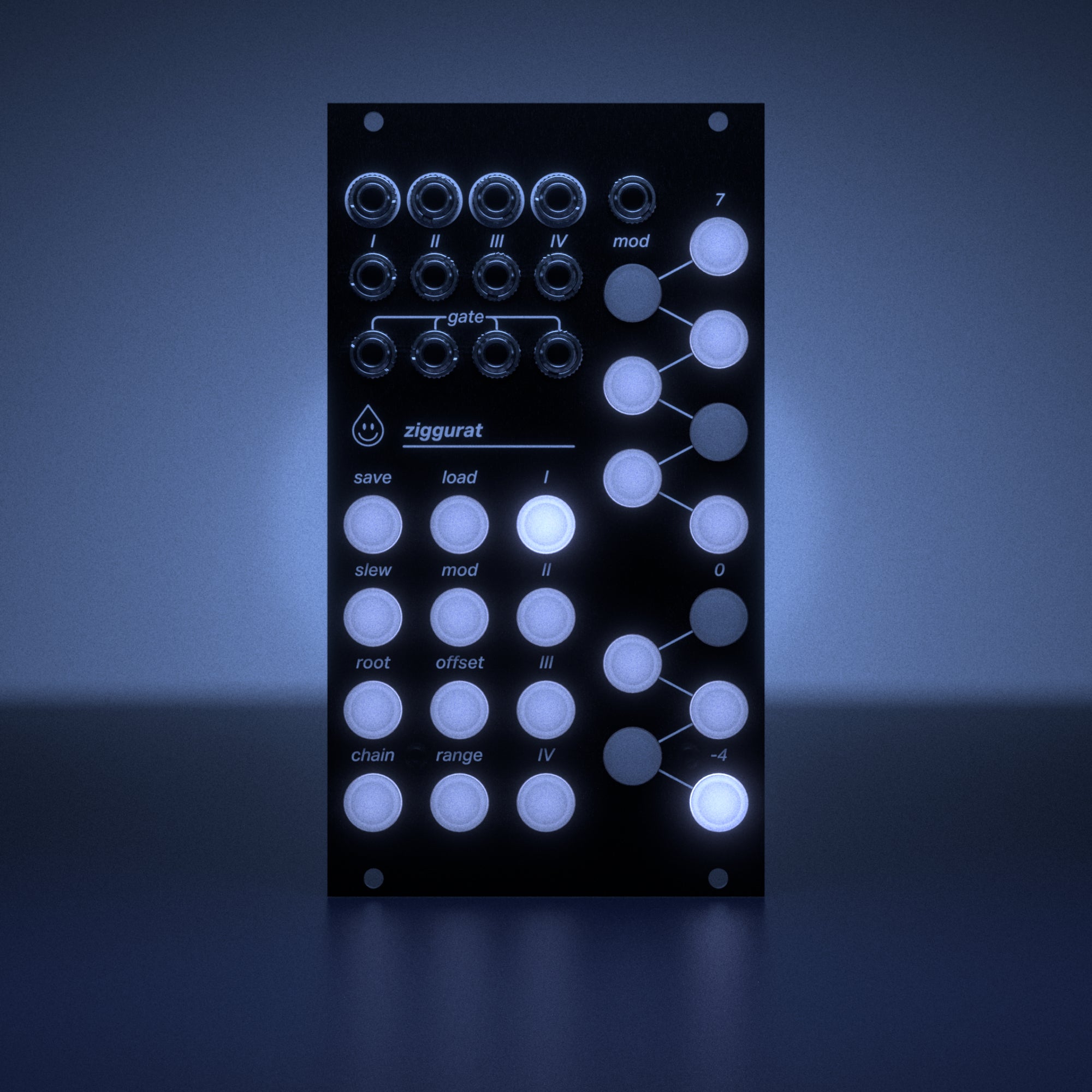

  • Ziggurat

Ziggurat is a 4 channel quantizer designed to turn any combination of control voltage and gate signals into inspiring and unexpected melodies.  Ziggurat provides a fresh way to explore harmonic relationships - wandering through different combinations of note masks, input signals, ranges and offsets until the music catches your ear - at which point all settings on the module can be easily saved for later reference

Regular price $399.00 USD

note mask

Adjust your note mask on Ziggurat’s 12 note keyboard to explore different harmonic ideas

channel link

Quickly link and unlink any combination of Ziggurat’s 4 channels for easy polyphonic pitch exploration

slew per note

Apply slew on specific notes in your note mask for interesting bending and sliding pitch

chain sequence

Type in a sequence to feed into the quantizer and step through it with gates or move through it with CV

about ziggurat

    • 14hp
    • 25mm deep
    • 90mA on +12V, 10mA on -12V, 0mA on +5V

    • Link channels by holding multiple channel buttons down together for 1 second
    • Save + Load - 35 save slots (5 banks of 7) available to save and recall all module settings
    • Slew - apply a slew to any note in your note mask. Adjust slew time from 0.1 sec to 5 sec
    • Root - Apply a semitone offset to a channel output to change the musical key/root note
    • Offset - Apply a semitone offset before quantization
    • Range - adjust the channel output voltage range in octaves from -4V to +7V. Simply press the lower and then upper bound of the range you want (or the other way around)
    • Chain - enter a series of notes in sequence (like an SH101 sequencer). A gate input with step through them in order, and an input voltage of 0-5V will move through the notes entered in either direction
    • Mod - assign the mod CV input to load, slew, root, offset and range to dynamically modulate these channel parameters
ziggurat manual
