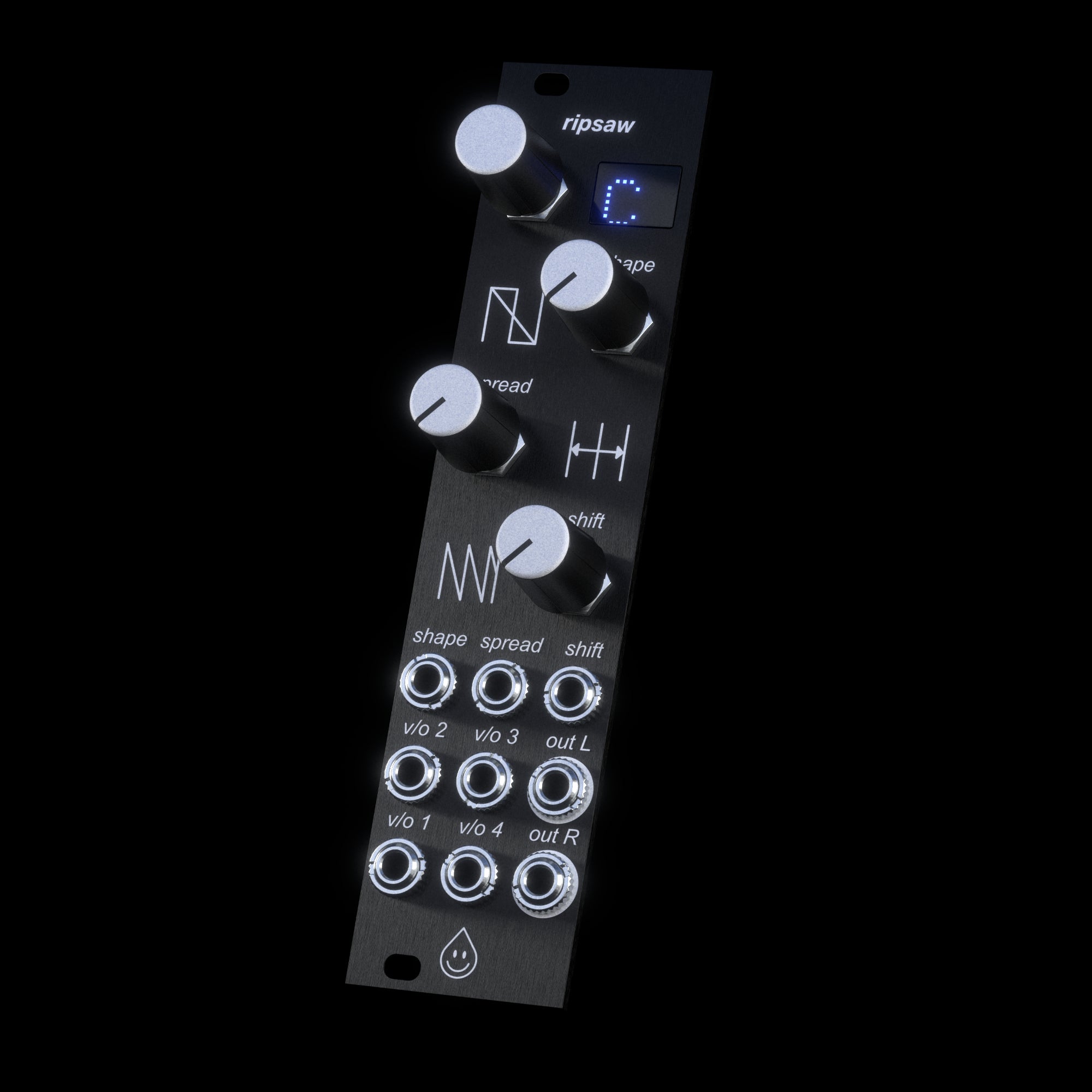

• Ripsaw
Regular price $319.00 USD

coming soon to a eurorack dealer near you

stereo super oscillator re-imagined

four voice paraphonic

Ripsaw contains 4 voices that can each be individually controlled with 1 volt per octave pitch CV

Seven oscillator spread

Each of Ripsaw's 4 voices contain 7 waveforms that can be detuned from eachother in pitch to create a lush swarm oscillator sound

wave morph

Ripsaw's oscillator waveforms morph smoothly from classic sawtooth to square for a hollow, haunting tone when spread detune is introduced

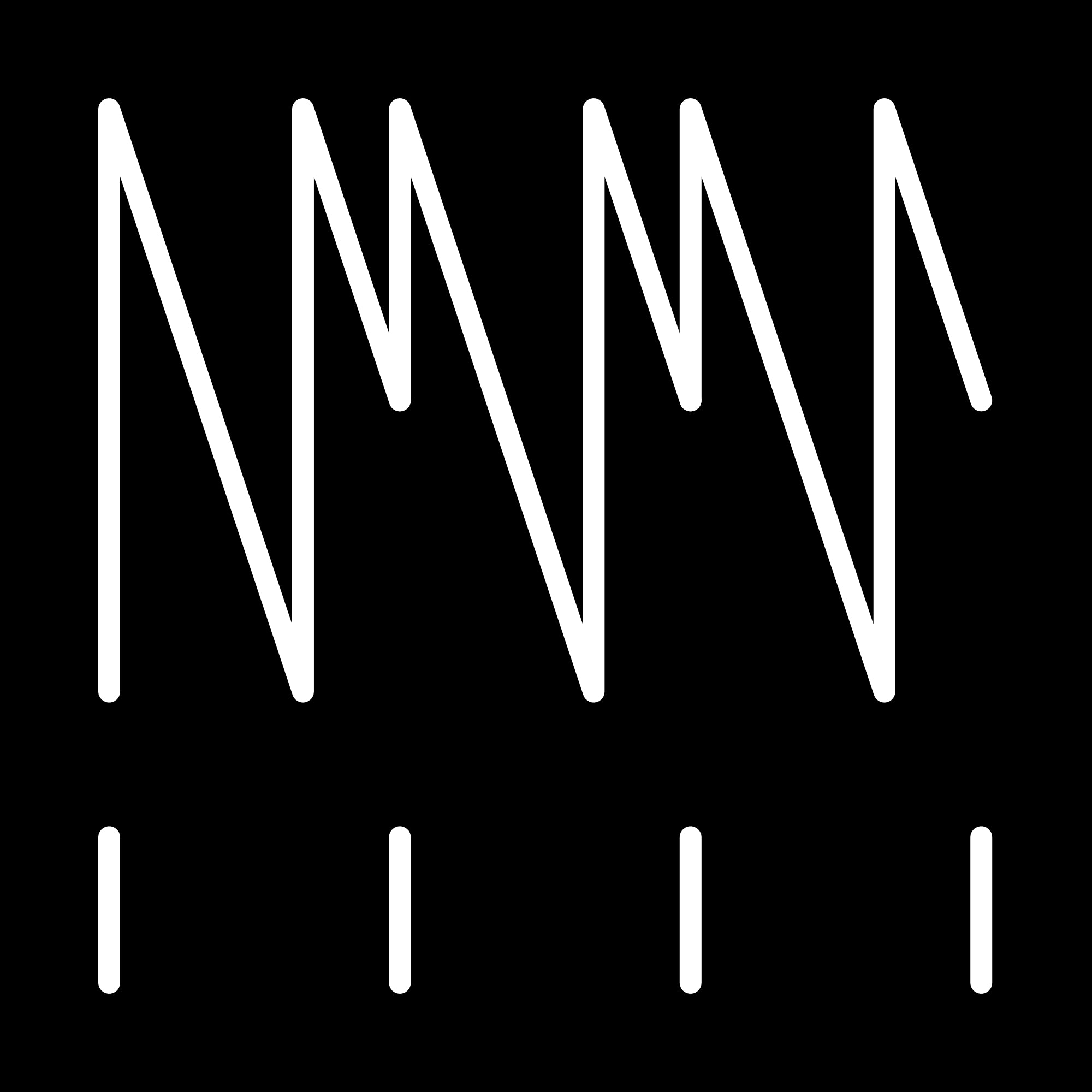

super sync

Ripsaw's shift parameter offsets the pitch of a hard sync oscillator for every one of the 28 waveforms to open up a whole new timbral dimension

hex platform

Ripsaw is only the first firmware to be released on our new 6hp eurorack hardware platform called HEX. Other firmware options that generate and process sound will be available to download and try out free of charge

about ripsaw

    • 6hp
    • 25mm deep
    • 42mA on +12V, 5mA on -12V, 0mA on +5V

    • 4 voices of 7 morphing saw-square waveforms each with individual volt per octave pitch control
    • 7 waves per voice spread across the stereo outputs
    • shift control introduces unique hard sync frequency shift to every waveform
    • onboard fine tune control and optional semitone quantization
    • reverse polarity power protection
    • designed and assembled in the Pacific Northwest
